• 產品介紹 Product Introduction

       單組分導熱凝膠是一種預固化的、高適配性的導熱凝膠。該材料具有十分優異的應變性，是大縫隙公差場合應用的理想材料。導熱凝膠可通過手工方式或自動化點膠設備來進行涂裝。

       Single component thermal gel is a pre curing, Gao Shi compatible thermal conductive gel. The material has excellent strain and is an ideal material for applications with large gap tolerance. Thermal conductive gels can be painted by manual or automatic dispensing equipment.

• 產品特點 Product Features

       -高導熱，低應力 High thermal conductivity, low stress

       -適合多公差的使用場景 Suitable for multi tolerance scenarios

       -可自動化點膠 Automatic dispensing

• 典型應用 Typical Application

       -功率芯片和散熱器之間 Between Power Chip And Radiator

       -通信基站主板和外殼之間 Communication Base Station Between Mainboard And Shell

       -熱電冷卻裝置 Thermoelectric Cooling Device

       -CPU和散熱裝置之間 Between CPU And Heat Sink

       -IGBT模塊 IGBT Module

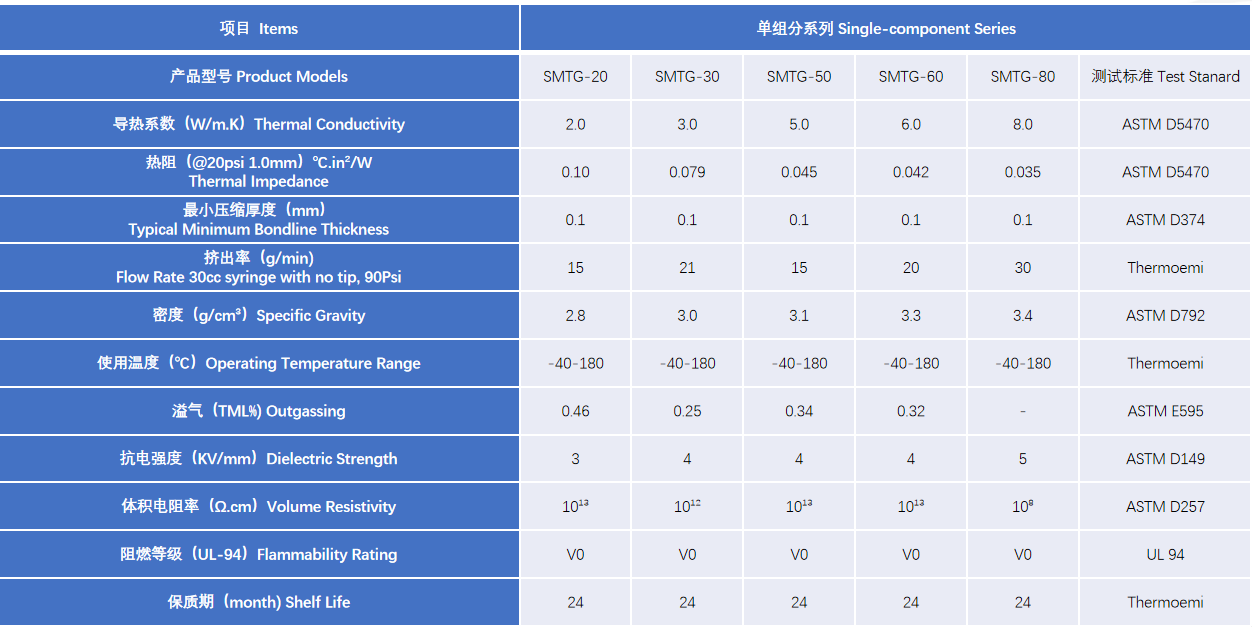

• 產品型號 Product Models
